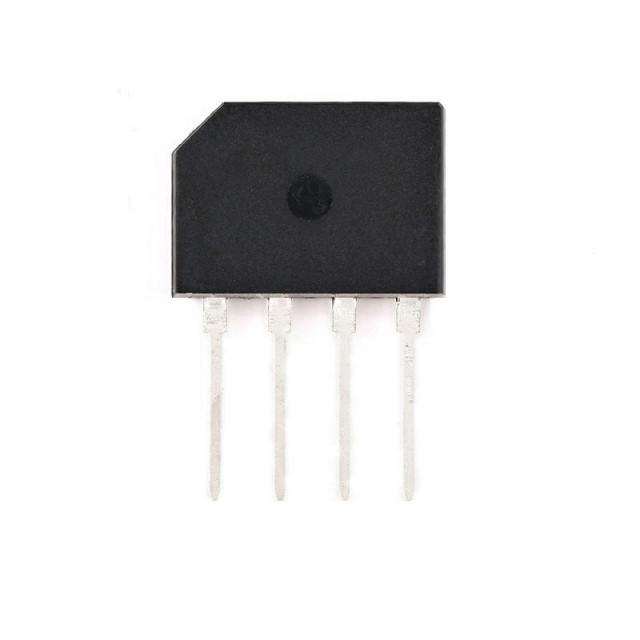

KBP308G / GBP308 Bridge

2,50 RON
5,00 RON / pachet
Acest produs este disponibil spre vanzare doar in pachete de 2 buc.
Preturile afisate sunt finale, stocurile reale. Taxa de procesare si expediere este invers proportionala cu valoarea comenzii.
Stoc 82
* * * * *
Adauga la Favorite

Descriere

Punte redresoare 800V 3A Ifsm: 65A. Cross Reference: High Current Single-Phase Bridge Rectifier. Equivalent / Similar Replacement: KBL308 KBP308 KBP308 MB308 SK308.

If – Forward Current: 3A
Ir – Reverse Current: 10uA
Peak Reverse Voltage: 800V
Vf – Forward Voltage: 1.1V
Max Surge Current: 65A
Minimum Operating Temperature: -55°C
Maximum Operating Temperature: +150°C
Length: 14mm
Width: 10.5mm
Height: 3mm
