Descriere

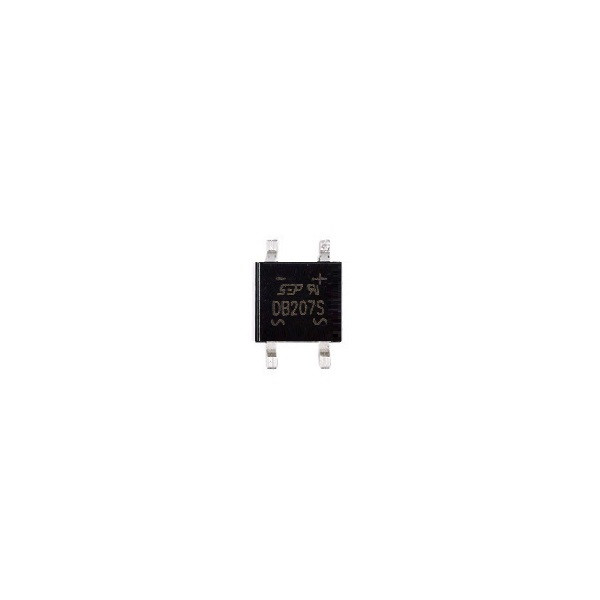

Punte redresoare SMD 1200V 2A Ifsm: 50A SOP4 Case. Cross Reference: Surface Mount ABS Single-Phase Bridge Rectifier. Equivalent / Similar Replacement: ABS6 ABS8 ABS10 ABS10D2 ABS15G ABS15J ABS15K ABS15M ABS210 B1JF B1KF B1MF B105S B250FS B250S2A B380FS B380S B380S2A B500S DB-1S DB105S DB106S DB107S DB157S DB207S DF06S DF06SA DF08S DF10S LB210S MB8S MB10F MB10S MBS6 MBS8 MBS10 MDB8S S380 S500 TB6S TB8S TB10S YBS2010 YBS2008.
If – Forward Current: 2A
Ir – Reverse Current: 10uA
Peak Reverse Voltage: 1200V
Vf – Forward Voltage: 1V
Max Surge Current: 50A
Minimum Operating Temperature: -55°C
Maximum Operating Temperature: +150°C
Length: 1.4mm
Width: 5mm
Height: 3mm
