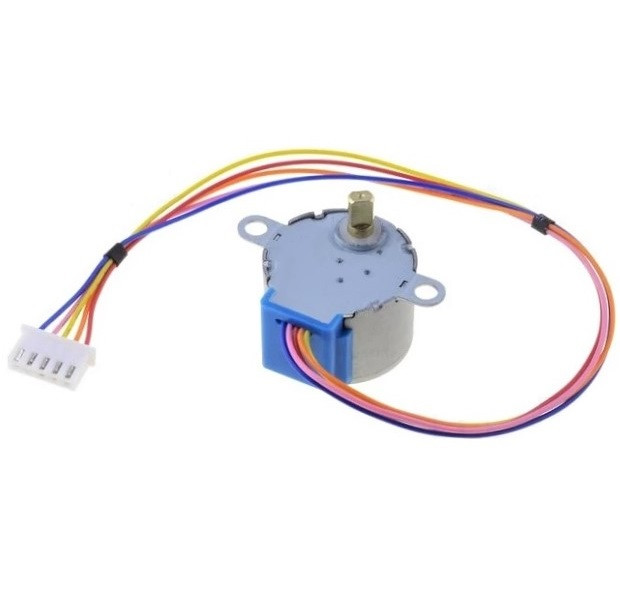

Step by Step Motor 28BYJ-48-5V

RON 18.00
Preturile afisate sunt finale, stocurile reale. Taxa de procesare si expediere este invers proportionala cu valoarea comenzii.
Stock 4
* * * * *
Add to Favorites

Description

Motor bifazic / bipolar pas cu pas pe lagare din bronz sinterizat, 2 faze, unghi de trecere 18° Tensiune de lucru: 5V Curent mediu: 240mA Rezistenta infasurari: 21Ω, conector 5 pini. Forta de retinere: 500gf/cm. Ax (ØxL): 5mmx 7mm. Dimensiuni (LxWxH): 29mm x 20mm x 28,5mm. Cross Reference: CX28BYJ48-08-5V Stepper Motor, NanoTechnology.

Motor pas cu pas pentru inchidere / deschidere trapa deflector aparate aer conditionat // Air conditioner / CNC Machines / Security cameras / DVD players / Control board 5V Stepper Synchronous Wind Motor.

Technical Specifications:

Operating Voltage: 5VDC
Operating Current: 240mA (typical)
Number of phases: 4
Gear Reduction Ratio: 64:1
Step Angle: 5,625°/64
Frequency: 100Hz
In-traction Torque: >34mN.m (120Hz)
Self-positioning Torque: >34mN/m
Friction torque: 600-1200gf/cm
Pull in torque: 300gf/cm
