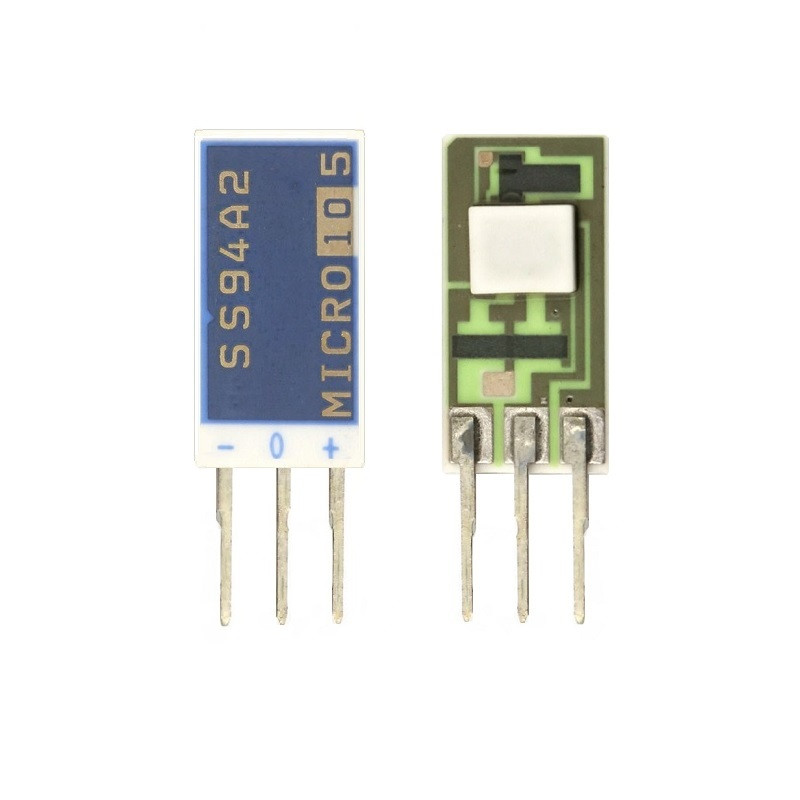

SS94A2 Hall Sensor Honeywell eq

RON 120.00
Preturile afisate sunt finale, stocurile reale. Taxa de procesare si expediere este invers proportionala cu valoarea comenzii.
Stock 2
* * * * *
Add to Favorites

Description

Hall Effect / Magnetic Angular and Linear Position Sensor, Noise Shielded Ratiometric Linear Output Hall-Effect Transducer Sensor. Operating Supply Voltage: 8VDC (6,6V ÷ 12,6V) 13 ÷ 30mA. Maximum Output Current: 1mA typ. Operating Point Min/Max: 500 Gauss ±0,02%. Operating Temperature: -40 ÷ 125°C. Package/Case: Single Axis Ceramic SIP3 Board Mount / Honeywell Solid State Electronics Center. Cross Reference: SS94A2C SS94A2D

Application:

Angular sensor
Brushless DC motor commutation
Contact-less sensor
Current sensing
Linear Compass
Motor control
Position sensor
Proximity detection
Reel Sensor
Rotation sensor
Solid state switch
Speed sensor
