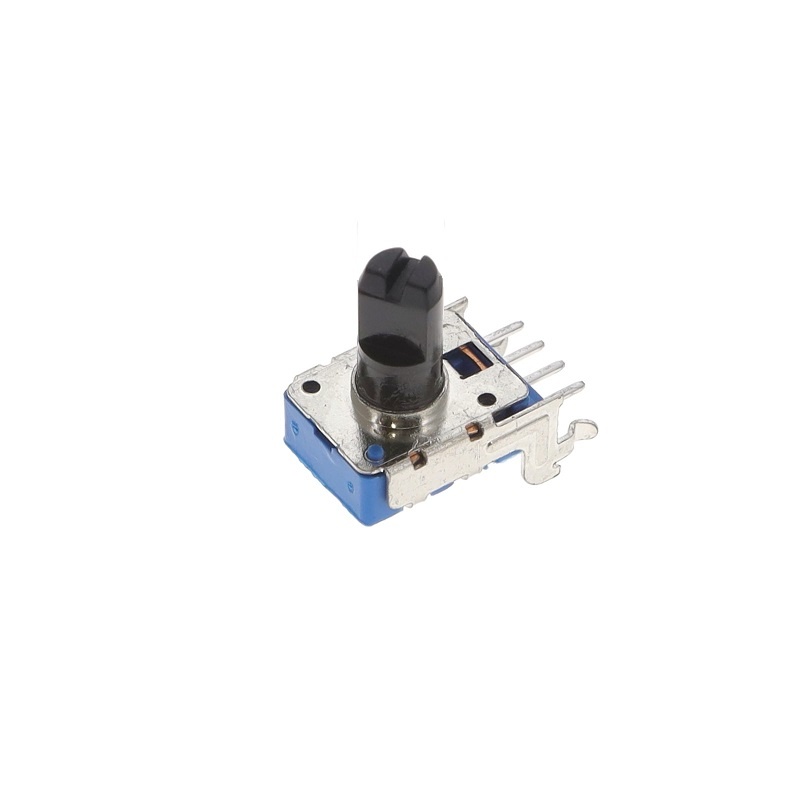

Potentiometru PTV111 / B103 4 pini 10K (ax 6x 8mm)
RON 14.00
Preturile afisate sunt finale (neplatitor de TVA), stocurile reale.
Gang Linear Through Hole, Snap In Rotary Insulated, Mono Linear Potentiometer / 10Kohm ±20% 50mW. Average life: min. 15.000 cycles. PCB Mounting. Alps / Bourns Cross Reference: 10KΩ 103B B1-03 B10K PTV111-2415AB103 PTV111-2415A-B103 RK09K11 RK11K1120A2B VZ486301 Yamaha Pitch Bend Audio Carbon Potentiometer.
Product description:
Rotation: 300°
Tolerance: ±20%
Type: Linear
Pin Terminal: 4
Shaft Diameter: 6mm
Shaft Length: 8mm
Base Height: 5mm
Base Size (L*W): 14 x 12mm
Use in: Amplifiers / mixers / drum machines / synthesizers / A = Flat Type Insulated Shaft.
Aplicatii: Amplificatoare / mixere / sintetizatoare
