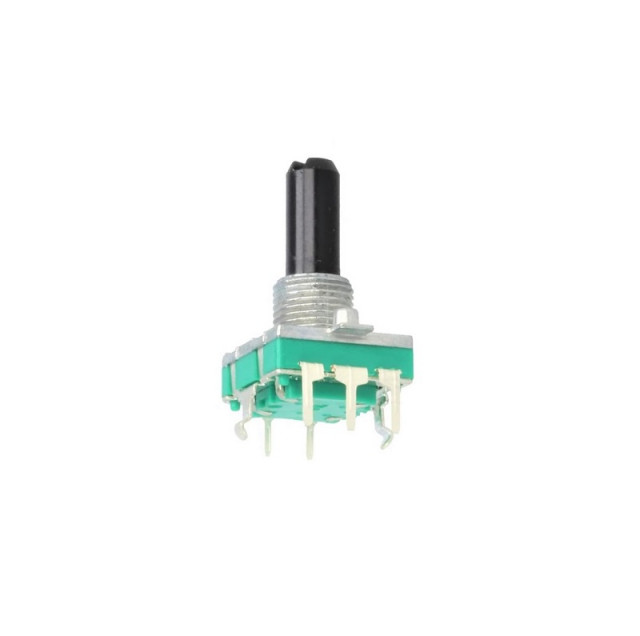

Potentiometru Encoder 5pini + push 24imp

RON 14.00
Preturile afisate sunt finale, stocurile reale. Taxa de procesare si expediere este invers proportionala cu valoarea comenzii.
Stock 1
* * * * *
Add to Favorites

Description

Incremental Rotary Encoder for Audio Device: Akai Denon Harman-Kardon Kenwood LG JVC Marantz Onkyo Pioneer Sansui Sony Yamaha. Resolution 24 imp/revol with push-on switch. Average life: min. 50000 cycles. Cross Reference: EC16E20-24P-SW

Manufacturer Alps / SRP
Mounting THT
Resolution 24imp / revol.
Output signal two phase A and B
Mechanical durability 50000 cycles
Max. operating current 5mA
Shaft notch / spring D
Shaft length 13mm
Operating voltage 5V DC
Shaft diameter 6mm
Number of positions 24
Encoders features with button
Thread length 5mm
L shaft length 12mm
Body dimensions 11.7x 13.75x 6.5mm
Terminal pitch 2.54x 14.5mm
