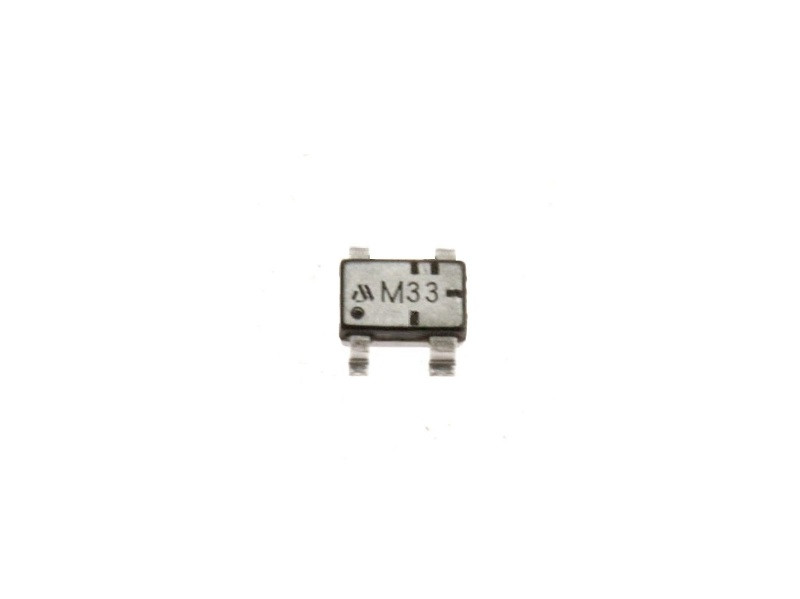

MM3404A33 / M33 Mitsumi se5

RON 12.00
Preturile afisate sunt finale, stocurile reale. Taxa de procesare si expediere este invers proportionala cu valoarea comenzii.
Stock 10
* * * * *
Add to Favorites

Description

High speed response, 200mA regulator IC with low quiescent current and high ripple rejection. Operating Voltage: 1,6 ÷ 6,5V. SC82 / SOT343 package. Mitsumi Electronics / Sony Cross Reference: 671513401 6-715-134-01 AM33 MM33 MM3404A33URE M3404A_33URE_M33. Use in: cellular phones, digital still cameras, mobile equipments.

Features

Output current: 0,2A
No load input current: 20μA typ.
Input current(off): 0,1μA max.
Output voltage range: 3,30V
Output voltage accuracy: ±1%(±20mV, Vo<2V)
Dropout voltage: 80mV typ. (Io=100mA)
Line regulation: 0,2%/V max.
Load regulation: 40mV max. (Io=0,1~100mA)
Ripple rejection: 75dB typ. (f=1kHz).

Utilizat in aparate Audio/Video Hi-Fi Sony model:

HCD-ESX9
HCD-GPX33
HCD-GPX555
HCD-GPX88
HCD-GZX33D
HCD-GZX88D
HCD-MX500I
HCD-SHAKE5
HCD-SHAKE-66
HCD-SHAKE-88 ...
