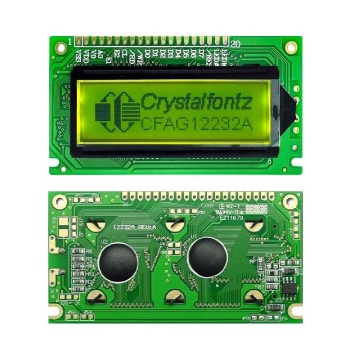

12232A LCD Display Module

8-Bit Parallel Interface 12232A Screen Monochrome Graphic LCD Matrix Module 20 pin. Interface Controller: SBN1661G / SED1520 or ST7920 5V STN Positive Yellow/Green Backlight, MosFet Tehnology !. Cross Reference: AG-12232A BC-12232A BG-12232A CG-12232A CFAG-12232A HY-12232A JRM-12232A LCM-12232A LG-12232A MG-12232A MT-12232A MTG-12232A NHD-12232AZ NHD-12232WG PG-12232A RD-12232A RYP-12232A SG-12232A SLYBBA/5V SMR-12232A WG-12232A YB-12232A Industrial Graphic Display. Specification: Dot Matrix Viewing Area: 122 x 32 Dots / Display size: 60mm x 18,5mm. Module size: 84mm x 44mm x 12mm. Modul afisaj matricial LCD BC 12232A YPLH. Made by: Bolymin / Crystalfontz / LCM Lumex / Matrix Microtips / Newhaven or Winstar.

Specificatii tehnice

Subtip afişaj: grafic
Rezoluţie afişaj: 122x32
Tehnologia afişajului: STN Positive
Culoare fundal: albastru sau verde
Dimensiuni: 59x29x6mm
Iluminare: 4x LED-uri
Culoare lumină de fundal: albă
Subtip controler: SBN1661G
Numărul de pini: 20
Pas pini: 1,27mm
Tip dispunere pini: 20 in linie
Temperatura de lucru: -20 ÷ 70°C

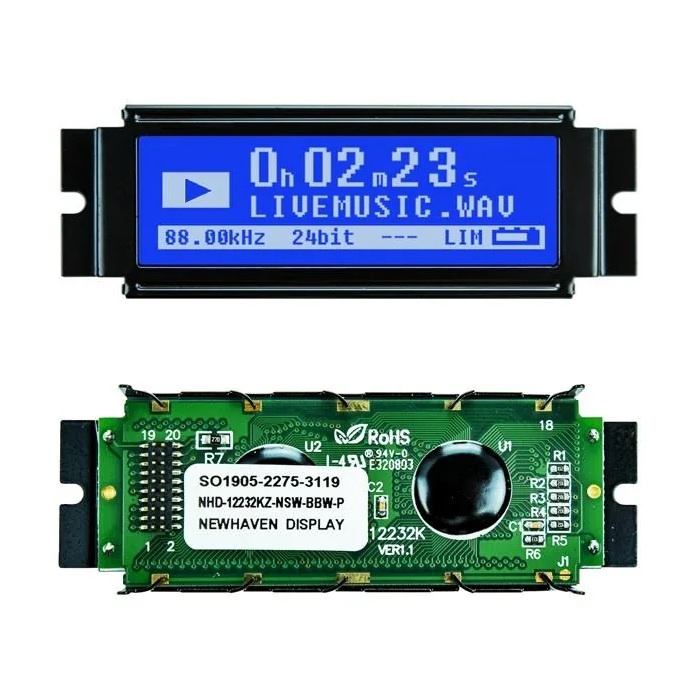

NHD-12232KZ-NSW-BBW-PNEWHAVEN AG12232A BC12232A BG12232A CG12232A CFAG12232A HY12232A JRM12232A LCM12232A LG12232A MG12232A MT12232A MTG12232A NHD12232AZ NHD12232WG PG12232A RD12232A RYP12232A SG12232A SLYBBA/5V SMR12232A WG12232A YB12232A DISPLAY INTERNATIONAL
